DIN 7985 Z4 - Cr. Rec. Pan Head Screws w/captive l/washer :

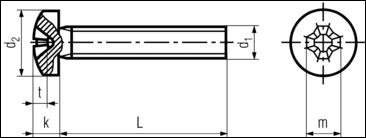

DIN 7985 Z4 - Cr. Rec. Pan Head Screws w/captive l/washer

*All measurements in millimeters (mm)*

d1
d2 max.
k max.
Phillips
m approx.
t min.
t max.
Proof Load N
M1.6
3.2
1.42
0
1.8
0.72
1.02
370
M2
4
1.72
1
2.5
1.1
1.4
600
M2.5
5
2.12
1
2.7
1.3
1.6
990
M3
6
2.52
1
3.1
1.7
2
1560
M3.5
7
2.82
2
4.2
1.74
2.24
2100
M4
8
3.25
2
4.6
2.04
2.54
2720
M5
10
3.95
2
5.3
2.77
3.27
4400
M6
12
4.75
3
6.8
3.03
3.53
6230
M8
16
6.15
4
9
4.18
4.68
11400
M10
20
7.68
4
10.2
5.38
5.88
18000


7001-8000
