DIN 6912 - Low Head Socket Cap Screws With Pilot :

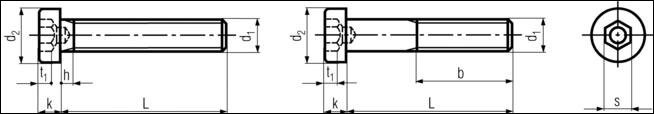

DIN 6912 - Low Head Socket Cap Screws With Pilot

*All measurements in millimeters (mm)*

d1
b
t1 min
s
k max
d2 max
M4
14
1.48
3
2.8
7
M5
16
1.88
4
3.5
8.5
M6
18
2.38
5
4
10
M8
22
2.88
6
5
13
M10
26
3.35
8
6.5
16
M12
30
3.85
10
7.5
18
M14
34
4.35
12
8.5
21
M16
38
5.35
14
10
24
M20
46
6.32
17
12
30
M24
54
6.82
19
14
36
M30
66
8.82
22
17.5
45
