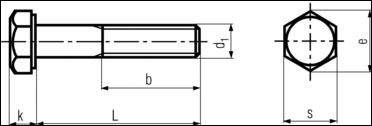

DIN 6914 - Hex Bolts For High Strength Struct. Bolting :

*All measurements in millimeters (mm)*

d	s	e	k	b
M12	22	23.91	8	21
M16	27	29.56	10	26
M20	32	35.03	13	31
M22	36	39.55	14	32
M24	41	45.2	15	34
M27	46	50.85	17	37
M30	50	55.37	19	40
M36	60	66.44	23	48
